Description

Motherbaord – EATX, ATX, Micro-ATX ITX
Top cover – With magnetic dust fiter
Side panel (left) – Half of Tempered glass with 4 screws
Side panel (left) – Snap half of tempered glass (Optional+$0.6)
Side panel (left)- Snap half of tempered glass (Optional+$0.9)

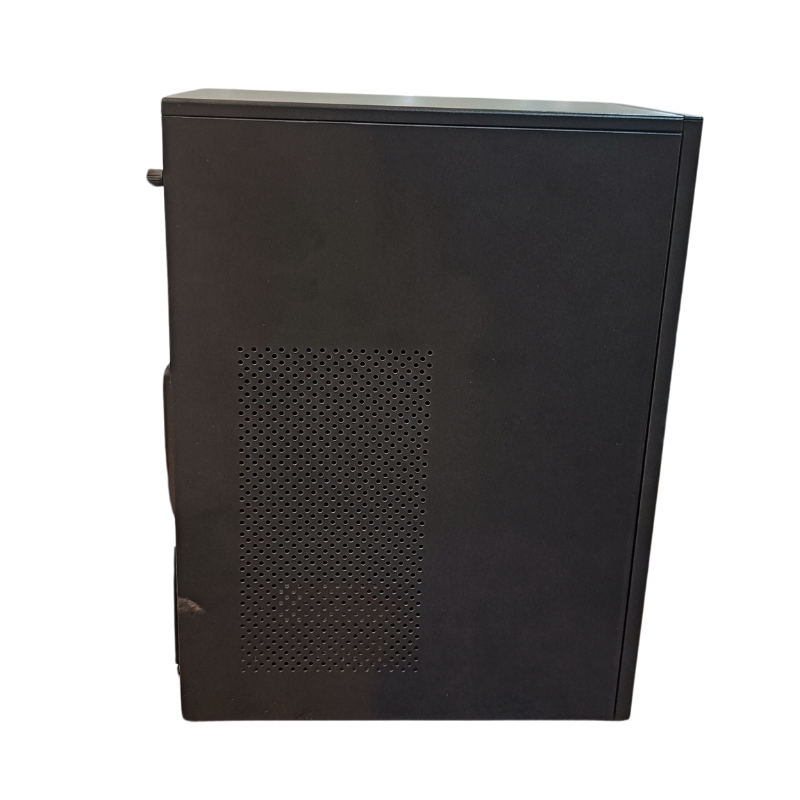

Side panel(right) – Metal cover
Chassis: SPCC 0.6mm, Black interior
USB1.0’2+HD AUDIO – (Included)
USB2.0’2+HD AUDIO – (optional+$0.4)
USB3.0*1 – (Included)
Type-c – (optional $1.6)
PUS Port: Bottom ATX with power supply chamb
Reserved Fan Ports. Top:2x12cm /2x14cm , Front: 3x12cm , Rear: 1x12cm
Radiator Support – Front: 240/280/360mm, Top 240/280mm, Rear:120mm
SSD – x3
HDD – x2
PCI Slots – x7
Size – Chassis: 360’215’470MM , Case: 395’215’486MM , Carton 530’266’458mm
Loading QTY 40HQ – 1065pcs
Max VGA Card- 340mm
Max CPU Cooler-165mm
Max PSU Length – 160mm
